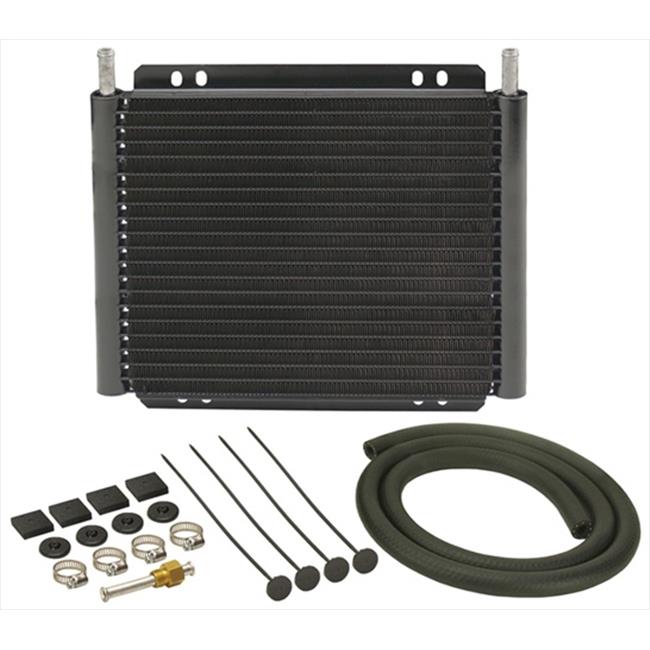

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 19 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- 22000 GVW rated
- Complete hardware kit included
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32 in. barb
- GVW: 20500
- Width: 11 in.
- Height: 8-3/4 in.
- Depth: 7/8 in.
- Inlet dim: 10-1/4 in.
- Mounting: 6-3/4 x 8 in.
- Hose size: 11/32 in.
- Hose length: 4 ft.
