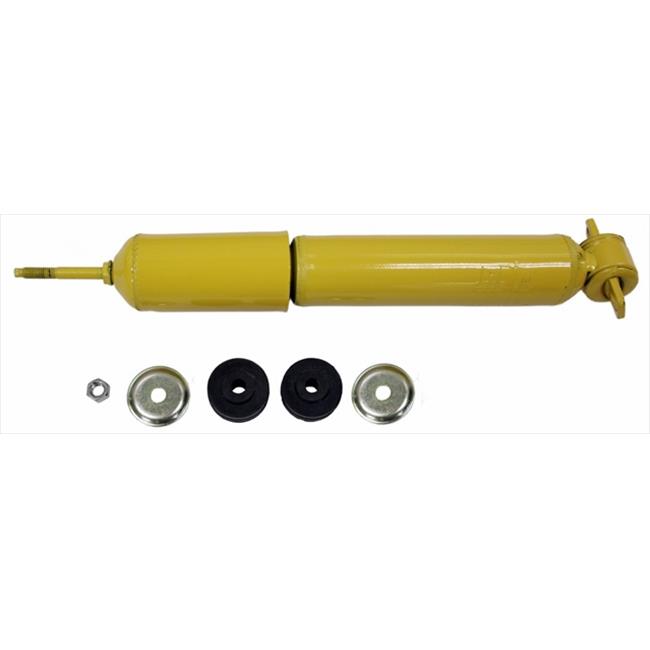

Gas-Magnum truck shock absorber is designed for mid to full size, hard working pick-up trucks and vans. These units provide firm control without a harsh ride.
Features- Bore - Lower operating pressure than standard 1 inch bore units. Special seal - 'self-lubricating' fluid seal designed to retain gas without excessive wear or friction.
- Reserve tube - more fluid for more consistent performance. Expanded reserve tube for greater oil capacity to better dissipate heat.
- Piston rod - heavy-duty nitro carburized rod for long service life. Work more efficiently with less effort.
- All weather fluid - Contains special modifiers to reduce friction and ensure smooth rod reaction.
- Full displaced valving - better valving range on both the compression and extension cycles of the unit for a smooth comfortable ride.
- Nitrogen gas charged - for improved ride and handling, helps maintain tire to road contact by reducing aeration.
- Sintered iron piston - stronger than traditional metals, enhances durability for longer service life.
- Type - Nitrogen Gas Charged.
- Internal design - twin tube.
- Extended length - 14.02 in.
- Compressed length - 9-3/4 in.
- Rod diameter - 5/8 in.
- Upper mounting style - Eye.
- Lower mounting style - Eye.
- Valving type - 10 stage full displaced valving.
- Rod Finish - Nitrocarburized.
- Rod Material - Sintered Iron.
- Body Color - Yellow.
- Fits for - 2009-2014 Chevrolet Express 3500, 2009-2014 Chevrolet Express 4500, 2009-2014 GMC Savana 3500.
